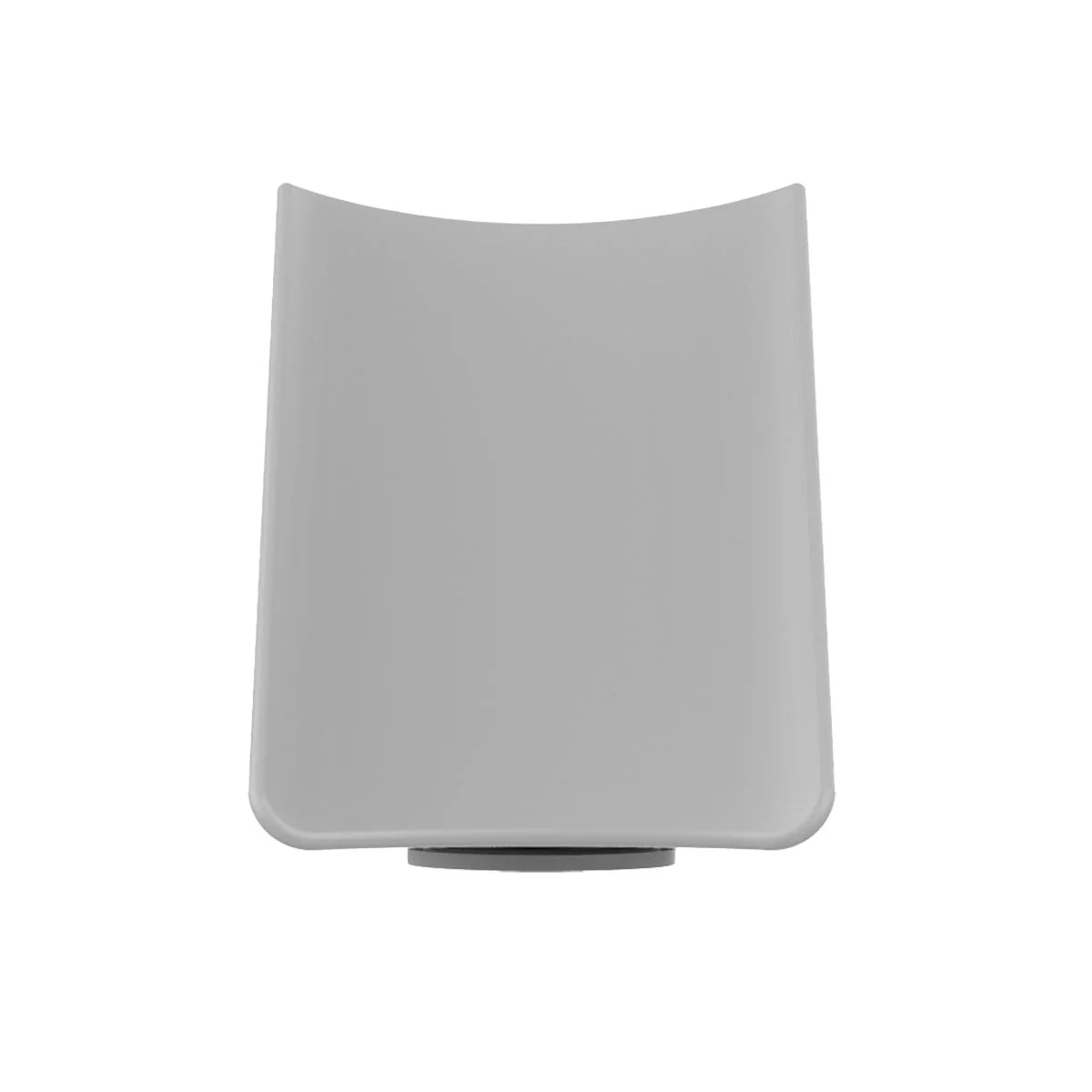

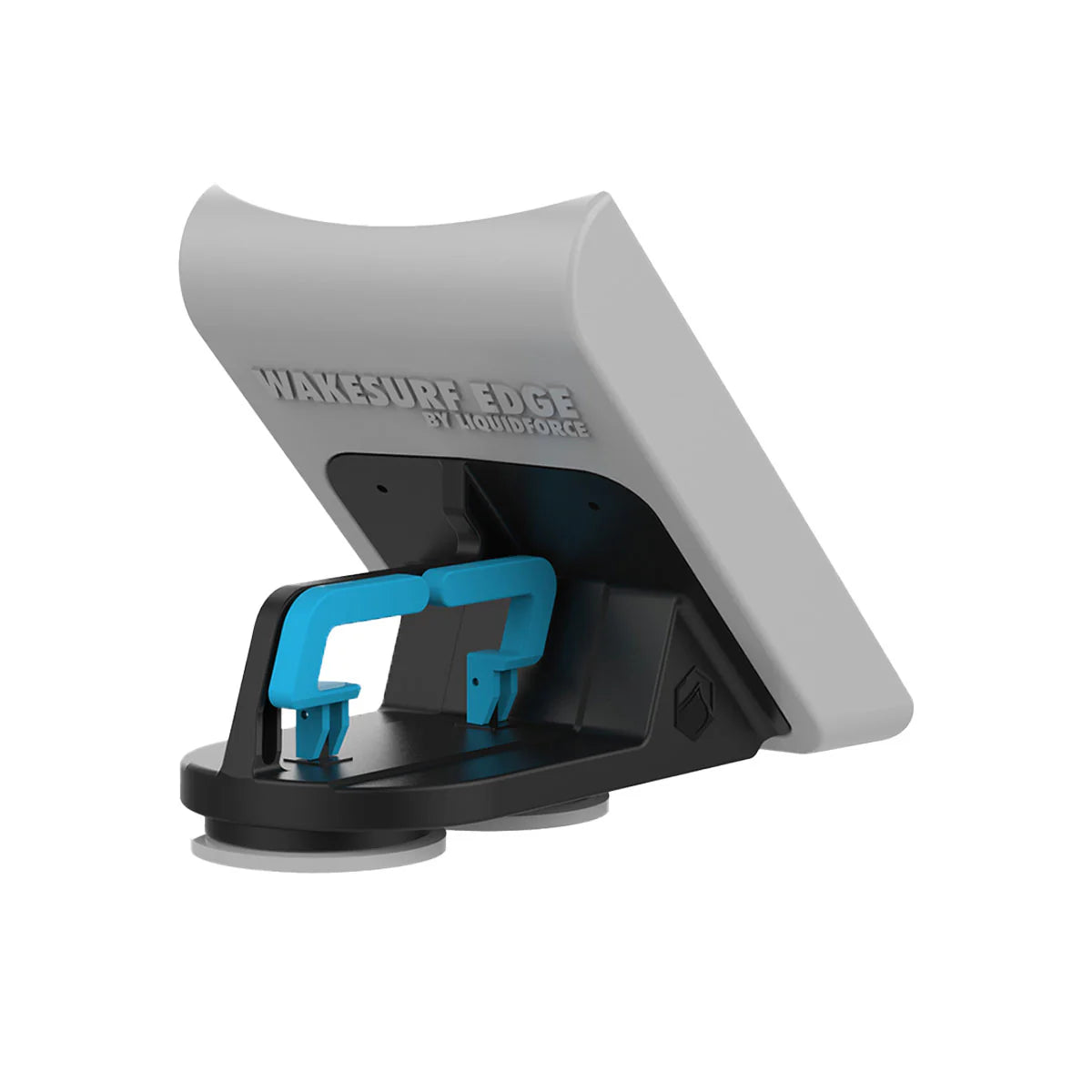

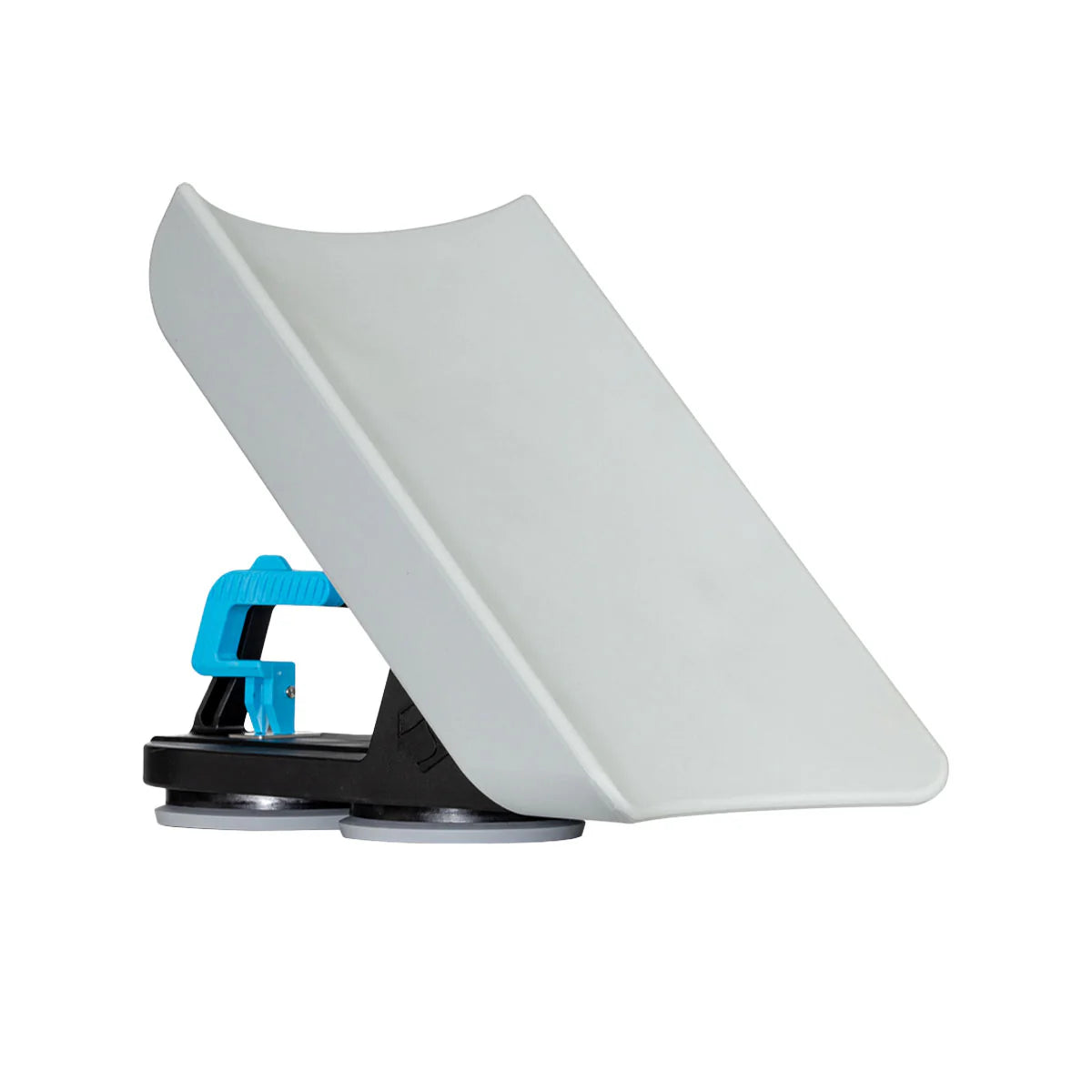

LIQUID FORCE WAKESURF EDGE PRO SHAPER 2

BOOST YOUR BOATS SURFING WAVE

The LF Wakesurf Edge Pro Wake Shaper 2 145 will make big wakes BIGGER! The Pro Shaper 2 145 requires a flat surface measuring 5" tall by 12" long clear of hull steps greater than 3/8". WSE suction cups will accommodate hull curvature.

Adjustable design lets you decide! Shift the Wakesurf Edge location on the fly to create deeper pockets or a longer wake face with more push.

Product Features

• Shaper Face Dims: 9in x 16in = 144in2
• Patented Concave Water Channeling Wing
• Super Strong Dual Suction Cup Attachment

Benefits

Large Water Displacement Wing for Maximum Wave Height!

Unlock your boat's full potential, and enjoy the surf wave you've been dreaming of!

Level load boat to keep nose down for the Captain's visibility and a long wave

WHERE TO ATTACH

---

PLACEMENT OF YOUR WAKESURF EDGE

Use the diagram for a good starting point to attach your Wakesurf Edge. It's important to note that when your boat is still in the water it sits at a different angle than when your boat is pulling at wake surf speed. Attach your Wakesurf Edge at a slight upward angle to reflect the angle that your boat will travel in during the ride. That will ensure that the face of the Wakesurf Edge is causing optimal water flow obstruction and forming the best possible wave shape. A good rule of thumb on how deep to attach the Wakesurf Edge is to attach it so that 2 or 3 inches of the Wakesurf Edge is sticking out of the water. Remember that the back of the boat sinks down upon acceleratation.

FORWARD ON THE BOAT

Placing the Wakesurf Edge more forward up the boat will cause the wake to be mellower, longer, and have more push.

BACKWARD ON THE BOAT

Placing the Wakesurf Edge all the way back on the boat will cause the wake to be steeper, shorter, and have a deeper pocket.

HOW TO ATTACH

---

CLEAN SUCTION

cup on the Wakesurf Edge and the contact area on the boat

ATTACH THE

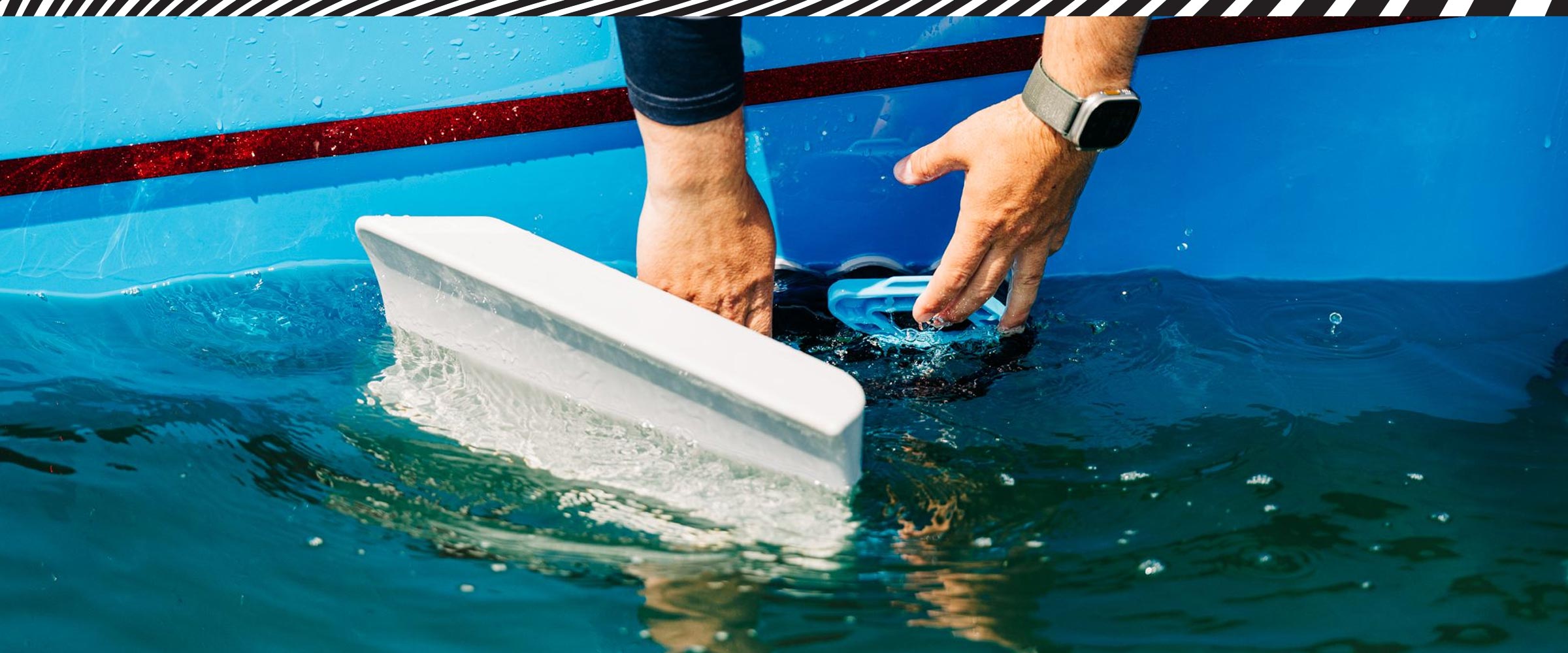

Wakesurf Edge to the opposite side of the rider, at or below water line near the stern of your boat

PRESS THE HANDLES

firmly against boat and flip up the the suction engagement levers

GIVE IT A SHAKE

to ensure it is suctioned firmly to your boat. If not, try again

GO SURF!

Wakesurf Edge is not meant for speeds greater than 13mph

TO DETACH

flip down engagement handles, and press firmly just above the logo
